Sự chỉ rõ
Định mức điện áp | 72V |
Sức chứa giả định | 50Ah |
Kháng cự bên trong | ≤220mΩ |
Chu kỳ cuộc sống | 2000 times at 85% dod 5000 times at 65% dod 8000 times at 40% dod |
End of charge Voltage | 14,6V |
End of charge Current | 100mA |
Max.Continuous charge current | 50A |
Phương thức tính phí | 0.2C (0.5A) CC/CV |
End of discharge Voltage | 9.2V |
Max. Pluse Discharge Current | 50A/10S |
Charge Temp | 0 ~ 45 ℃ |
Discharge Temp | -10~55℃ |
Storage Temp | -10 ~ 45 ℃ |
Dimension(D×W×H) | 332*170*220mm |
Cân nặng | ≤20Kg |
Tích hợp hệ thống bảo vệ pin tự động | Đúng |
Charge plugs and Discharge connectors optional

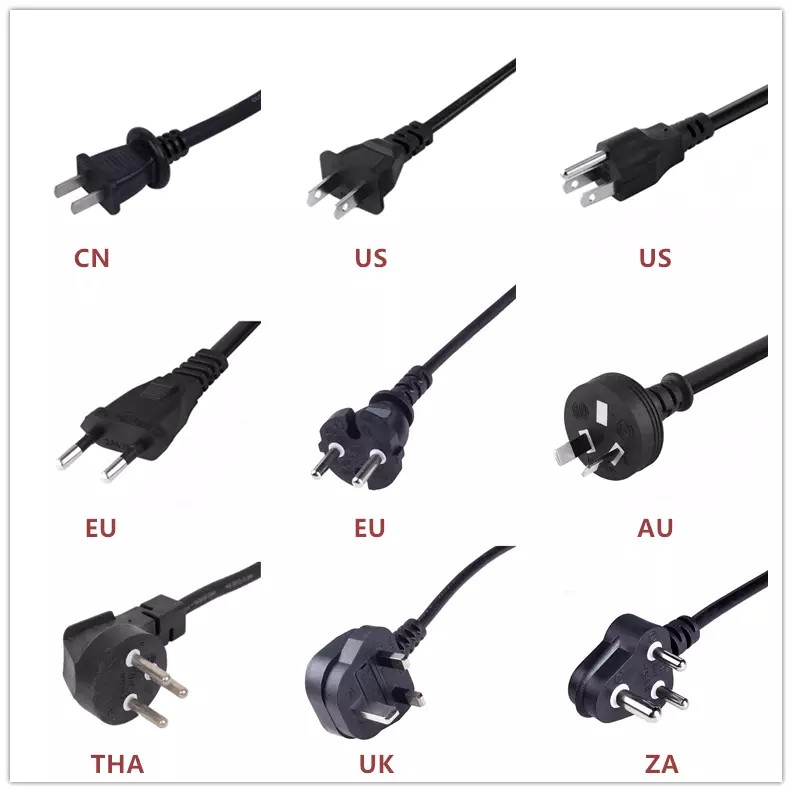

1.Charger Plug: US EU UK AU plugs optional, will provide according to delivery country if without request

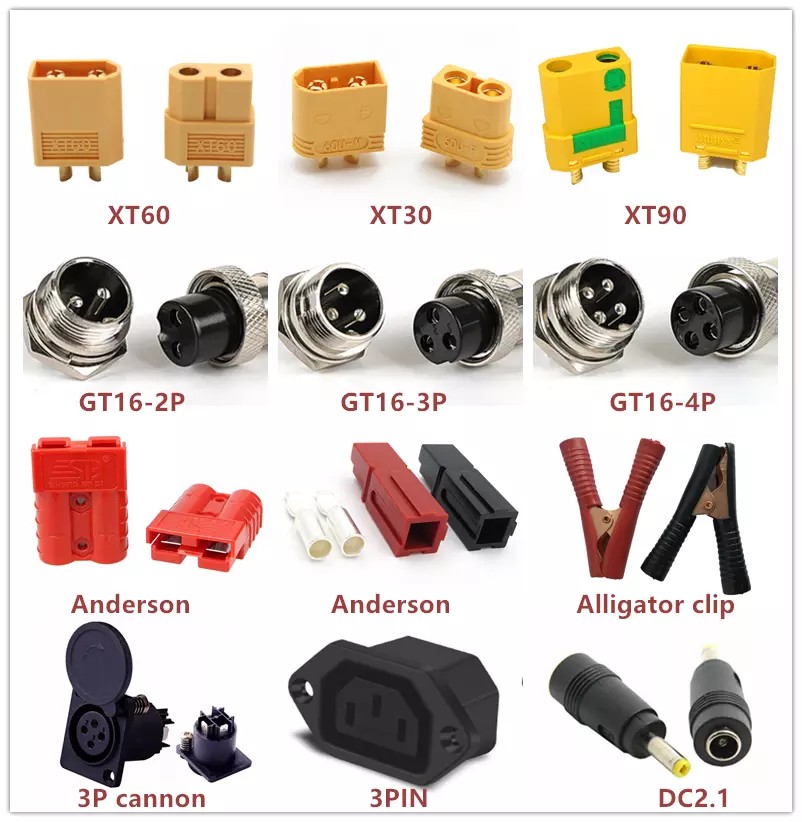

2.Discharge Connector: There are 12 kinds optional as below picture, will provide naked cable or soldered with default connector if without requested.
Đặc trưng
1.Lighter weight, smaller size
2.High temperature performance
3.Extremely safe, no explosion, no fire under collision
4. mạnh mẽ chống xả quá mức và duy trì phí
5.Strong charging acceptance and quick-charging capability
6.Maintenance-free and no acid or water for maintenance in usage
7.Large capability and long life for all high power output applications
8.Environmentally friendly non-toxic, non-contaminating, no rare metal.
9.Low self-discharge and good discharge performance at low temperature
10.Excellent large current discharge performance especially in startup and climbing
OEM
We also can customize the battery 12v/24v/36v/48v/72v 100h,120ah,200ah,300ah,400ah,800ah with metal box. The size and shape are flexible according to your given size. And if necessary, we can offer a remote LCD display to monitor the battery status.
To welcome the world cooperation we accept OEM with your logo design.
Ứng dụng
Các ứng dụng
* Electric Vehicles for Commercial and Commuting * Electric Scooter * Golf Cart/ troller * Electric Mobility * Electric Motorcycle * Electric Bicycle * Electric Wheelchair * Electric Power Mower * RV (Recreational Vehicle) * AGV (Automatic Guided Vehicle) /AGV cars/ AGV robots/ Self-guided
Nhà máy của chúng tôi
Câu hỏi thường gặp
1,Q: What's the main product in AIN?
A: Rechargeable battery. NiMH, Li-ion, Lipo battery and power battery pack.
2, Q: Overcharge là gì?
A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode.
Observe changes in battery appearance.
3, Q: Xả quá mức là gì?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in
battery appearance.
4. Q: Tôi Có Thể có một đơn đặt hàng mẫu?
A: Vâng, chúng tôi chấp nhận đơn đặt hàng mẫu để thử nghiệm và kiểm tra chất lượng. Pin có thể được thực hiện theo yêu cầu.
5. Q: Bạn có giới hạn MOQ?
A: Có, chúng tôi có giới hạn MOQ để sản xuất hàng loạt, nhưng nó phụ thuộc vào kiểu pin. Hãy liên hệ với chúng tôi để biết thêm chi tiết.
6. Q: Làm Thế Nào về thời gian dẫn?
A: Các mẫu sẽ mất 5-7 ngày làm việc. Sản xuất hàng loạt sẽ mất 25-30 ngày. Nó phụ thuộc vào số lượng.
7. Q: Làm Thế Nào về vận chuyển và thời gian giao hàng?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.
8. Q: Những gì về dịch vụ sau bán hàng?
A: We will offer you 2 years guarantee. If there are any problems, please inform us, we will offer you positive solutions.
